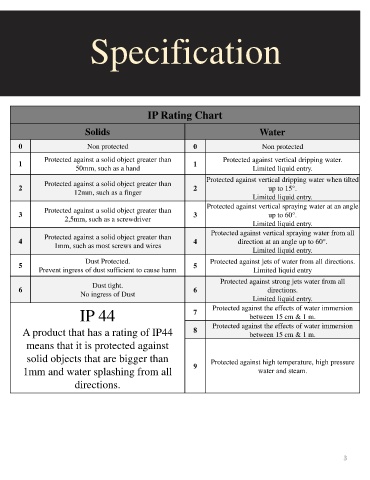

Specification

IP Rating Chart

Solids Water

0 Non protected 0 Non protected

Protected against a solid object greater than Protected against vertical dripping water.
1 1
50mm, such as a hand Limited liquid entry.
Protected against vertical dripping water when tilted
Protected against a solid object greater than
2 2 up to 15°.
12mm, such as a finger
Limited liquid entry.
Protected against vertical spraying water at an angle
Protected against a solid object greater than
3 3 up to 60°.
2,5mm, such as a screwdriver
Limited liquid entry.
Protected against vertical spraying water from all
Protected against a solid object greater than
4 4 direction at an angle up to 60°.
1mm, such as most screws and wires
Limited liquid entry.
Dust Protected. Protected against jets of water from all directions.
5 5
Prevent ingress of dust sufficient to cause harm Limited liquid entry
Protected against strong jets water from all
Dust tight.
6 6 directions.
No ingress of Dust
Limited liquid entry.
IP 44 7 Protected against the effects of water immersion
between 15 cm & 1 m.
Protected against the effects of water immersion
A product that has a rating of IP44 8 between 15 cm & 1 m.

means that it is protected against

solid objects that are bigger than Protected against high temperature, high pressure
1mm and water splashing from all 9 water and steam.

directions.
